GY Series

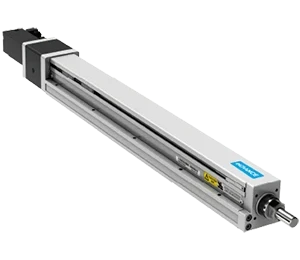

Track-Embedded Rod-Type Ball Screw Sliding Table Electric Cylinder
GY Series / LEB Series / LY Series
Others
Specification
| Model | GY5 | GY8 | |
 |  |
||
| Repeatability (mm) | ±0.01 | ||
| Motor (W) | 100 | 200 | |
| Lead (mm) | 2/5/10/20 | 5.10.20 | |
| Max. Speed (mm/s) | 100/250/500/1,000 | 250/500/1,000 | |
| Load | Horizontal (kg) | 30/30/15/10 | 50/30/12 |
| Vertical (kg) | 10/10/5/2.5 | 15/8/2.5 | |
| Effective Travel (mm) | 50 to 600 | 50 to 800 | |
LEB Series

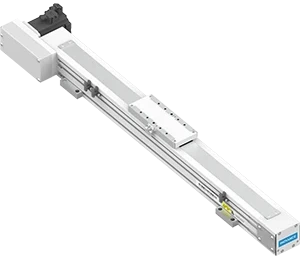

European Standard Belt-Driven Sliding Table Electric Cylinder

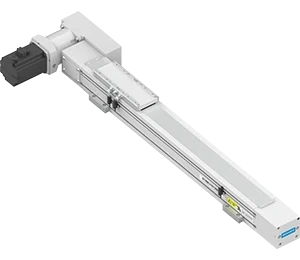

| Model | LEB65 | LEB85 | LEB110 | |
 |  |  |
||
| Repeatability (mm) | ±0.01 | |||
| Motor (W) | 400 | 750 | 750 | |
| Lead (mm) | 110 | 200 | 250 | |
| Max. Speed (mm/s) | 1,833/1,100/785/550 | 2,000/1,428/1,000 | 1,250/833/625 | |
| Load | Horizontal (kg) | 30/45/55/60 | 40/60/100 | 100/150/200 |
| Vertical (kg) | 9/15/16/17 | 14/21/24 | 23/36/50 | |
| Reduction Ratio | 3:1/5:1/7:1/10:1 | 5:1/7:1/10:1 | 10:1/15:1/20:1 | |
| Effective Travel (mm) | 100 to 3,000 | 100 to 5,000 | 100 to 4,800 | |
LY Series
Linear Cylinder

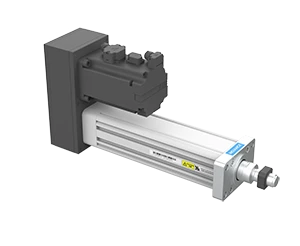

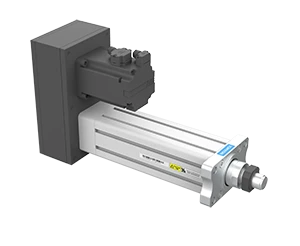

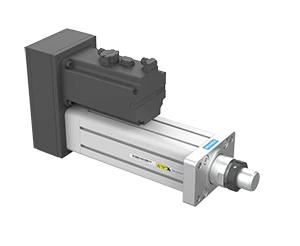

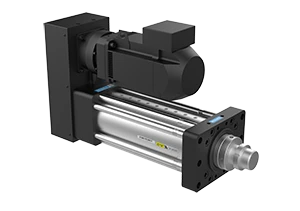

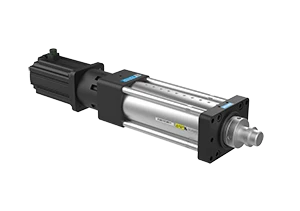

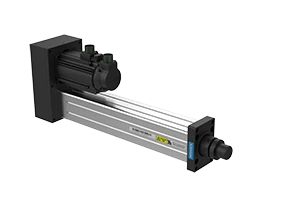

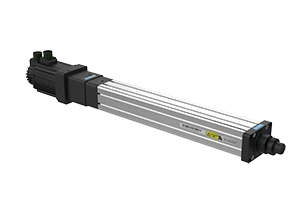

| Model | LY40 | LY50 | LY65 | LY75 | LY80 | LY94 | ||||||
 |  |  |  |  |  |
|||||||
| Repeatability (mm) | ±0.02 | |||||||||||
| Motor (W) | 50 | 100 | 200 | 400 | 400 | 750 | 400 | 750 | 750 | 1,500 | 1,000 | 1,500 |
| Lead (mm) | 4/5 | 4/5 | 5/10 | 5/10 | 5/10 | 5/10 | 5.10.20 | 5.10.20 | 5.10.25 | 5.10.25 | 5/10/20/32 | 5/10/20/32 |
| Max. Speed (mm/s) | 200/250 | 200/250 | 250/500 | 250/500 | 250/500 | 250/500 | 250/500/1,000 | 250/500/1,000 | 250/500/1,250 | 250/500/1,250 | 250/500/ 1,000/1,600 | 250/500/ 1,000/1,600 |
| Load (kg) | 21/17 | 42/34 | 68/34 | 136/68 | 135/68 | 255/128 | 135/67/33 | 255/128/64 | 255/128/51 | 530/261/104 | 340/170/84 | 523/261/ 130/82 |
| Reduction Ratio | 1:1/1.5:1/2:1 (timing pulley) | 1:1/1.5:1/2:1 (timing pulley) | 1:1/1.5:1/2:1 (timing pulley) | 1:1/1.5:1/2:1 (timing pulley) | Frame size 60/90/115 (Reducer) | Frame size 90/115/142 (Reducer) | ||||||
| Effective Travel (mm) | 50 to 300 | 50 to 350 | 50 to 450 | 50 to 600 | 50 to 750 | 50 to 950 | ||||||

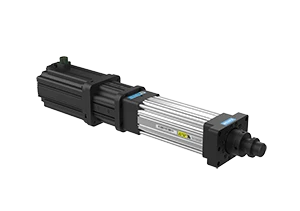

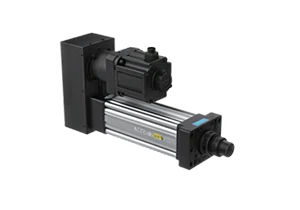

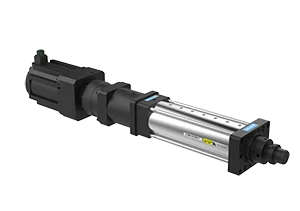

| Model | LY110 | LY135 | LY140 | LY160 | LY180 | LY245 | ||||||
 |  |  |  |  |  |
|||||||
| Repeatability (mm) | ±0.02 | |||||||||||
| Motor (W) | 1,800 | 7,500 | 1,800 | 7,500 | 7,500 | 11,800 | 7,500 | 14,500 | 7,500 | 18,100 | 7,500 | 27,000 |
| Lead (mm) | 5/10/20/40 | 5/10/20/40 | 10/20 | 10/20 | 10/20 | 10/20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max. Speed (mm/s) | 125/250/ 500/1,000 | 125/250/ 500/1,000 | 250/500 | 250/500 | 250/500 | 250/500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Load (kg) | 1,227/613/ 307/153 | 5,120/2,562/ 1,281/640 | 610/306 | 2,562/1,300 | 2,526/1,281 | 4,003/2,002 | 1,281 | 2,460 | 1,281 | 3,070 | 1,281 | 4,800 |
| Reduction Ratio | Frame size 90/115/142 (Reducer) | Frame size 115/142 (Reducer) | Frame size 115/142/180 (Reducer) | Frame size 142/180 (Reducer) | Frame size 142/180/220 (Reducer) | Frame size 180/220 (Reducer) | ||||||
| Effective Travel (mm) | 50 to 1,200 | 50 to 1,500 | 50 to 1,500 | 50 to 1,800 | 50 to 1,800 | 50 to 2,400 | ||||||
